Teams

To create a bot on Teams that will be connected to your dydu bot, follow these steps:

1. Azure Portal: Create a configuration and set up the connection between this configuration and dydu. The operations to be performed in this section are:

   • Create a resource group

   • Create an Azure bot

   • Configure Microsoft credentials

   • Connect the resource group to the Azure bot

2. dydu BMS Channels Menu: Configure your dydu bot, choose the consultation space and language

   • Create a Teams configuration

   • Download the bot application

3. Teams: Publish your configuration

   • Publish the bot in Teams

Azure Portal

Create a Resource Group

1. Sign in to the Azure Portal.

2. Select "Resource Groups"

1. In the Resource Groups page, click Create button

1. Fill the following values:

   • Subscription: Select your Azure subscription

   • Resource group: Enter a new resource group name.

   • Region: Select an Azure location

1. Click on Review + create button

2. Select Create. It takes a few seconds to create a resource group.

3. The resource group list is refreshed

4. Then, return to the home page.

Create Azure bot​

1. Select Bot services

2. Click on Create

3. Look for Azure Bot in the Bot Services list.

   • Click on Load more at the bottom of the page if Azure Bot is not displayed on first page.

   • Then, click on Azure Bot.

4. Click on Create.

5. Fill the required information:

   • Bot Descriptor: The name of your Teams bot. It can be modified later via Azure. The bot descriptor can only contain the following characters: a-z, A-Z, 0-9, -, and _, must start with a letter or number, and must be between 4 and 42 characters long.

   • Subscription: Choose Azure CSP

   • Resource Groups: Select the resource group you created earlier

   • Application Type: Select "Multi-tenant"

1. Then, click on Review + Create button.

2. Wait a few seconds. Then you can see this page:

1. Click on Create button.

2. Click on Go to resource button

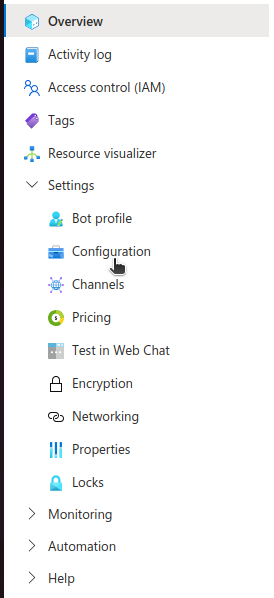

1. Click on configuration in the left menu

Credentials in azure​

Here you can find your Microsoft App ID:

1. Click on Manage to create the Microsoft App password in Certificates

1. Click on New client secret

2. Fill in the required information:

• Description: a description of the client

• Expiration date: select “24 months”

1. Click on the Add button

Important: Copy the value of the client secret and save this value since later you will not be able to see.

Create connector between azure service and microsoft teams​

1. Go back to the home page and open your created bot.

2. Click on Channels in the left menu and click on the Microsoft Teams icon.

1. Accept the Terms of Use and click on Save.

1. Click on Configuration in the left menu to configure the connector endpoint and fill in the Messaging endpoint field. Check the Enable streaming endpoint box. You can find the endpoint on the first configuration page of Teams under Channels.

Example for a SaaS server - app1:

1. Click on Apply.

Dydu Channels

Create Teams configuration​

1. Connect to the BMS.

2. Then go to Integration > Channels.

3. Clic on “Create”.

4. Select "Microsoft Teams"

1. Give it a name, click on the Teams icon to select it, and then click on "Create."

1. Choose the consultation space and the language that your Teams chatbot will use.

1. Click on "Next".

2. Enter the Microsoft App ID and the clientSecret that you previously copied from MS Azure and fill in the various elements of your bot's presentation in Teams.

Bot descriptions

These are the descriptions displayed for your bot within Teams.

These fields are mandatory.

The short description must not exceed 80 characters and must not be repeated in the full description.

The full description must not exceed 4000 characters.

• Bot names

This is the name displayed to designate your bot within Teams.

The "short name" field is mandatory and must not exceed 30 characters.

The "long name" field is not mandatory, you can use it if the chosen name exceeds 30 characters. It must not exceed 100 characters.

• Bot avatar

Your bot in Teams must have two icons:

• the main avatar of the bot and

  • it must respect a dimension of 32*32 pixels and can be in colour

• the icon of the application (which appears in the sidebar of Teams

  • it must respect a dimension of 192 x 192 pixels and must be transparent

The accepted format for these icons is PNG.

• Name of the bot's author

This is the name of the bot creator. This is a required field that must not exceed 30 characters.

Available URLs

These are the urls :

• Website

• Privacy policy

• Terms of use

The urls are required.

They are displayed in the "About" tab within your bot Teams

Options

• Enable knowledge triggering on negative feedback

Trigger knowledge in case of one or more misunderstandings.

• Display the technical welcome in the conversation:

Allows displaying the #teamswelcome# which must be configured in the BMS and will trigger at the beginning of the conversation.

Download the bot application​

During the third and final step "Download":

1. Click on the "Download" button. Save the ZIP file and click on "Finish".

Note: If the required fields are not filled out, you will not be able to download the ZIP configuration file for your bot application.

1. Click on "Finish".

Teams

Publish the bot on Teams​

1. Go on Teams.

2. Click on Apps at the bottom left corner of your screen.

3. Click on Manage your applications at the bottom left of your screen.

4. Click on the Submit an application to your organisation button

This will take you to the page listing the different applications you have submitted to your organisation. Click again on Submit an application.

1. Select the ZIP configuration you saved before.

2. Your application is now listed under pending requests.

3. Once approved by your administrator, you can find your application in the app catalog designed for your organization. You may need to restart Teams to see the application appear in the catalog. To open your organization's app catalog, click on "Designed for your organization" at the top of the list in the left menu.

4. Click on the application you created.

5. Then click on the "Add" button.

6. You can start the dialog with your bot.

Features available for a dydu bot under Teams

The following tables show the supported and unsupported features for a dydu bot under MS Teams.

• Supported = The functionality is available and works as part of a dydu bot in MS Teams

• Unsupported = The functionality cannot be implemented for a dydu bot in MS Teams

Formatting the response

Feature	Support	Comment
"Heading" tag	Supported
Bold	Supported
Italic	Supported
Underline	Supported
Text color	Supported
Text background color	Supported
Text alignment	Supported
Indentation	Supported
Ordered list	Supported	Bullets are not displayed but the list hierarchy is respected and displayed
Non ordered list	Supported	Scheduling numbers/letters are not displayed but the list hierarchy is respected and displayed
Link to an external URL	Supported
Link to knowledge (reword)	Supported
Display a table	Supported
Split bubble	Supported
Images / File from the gallery	Supported
Smiley	Supported
Using mathematical expressions	Unsupported
Display a side panel	Supported

Features available for response

Feature	Support	Comment
Step actions	Supported
Alternative answers	Supported
Use a variable in an answer	Supported
Automatically redirected to an external URL	Unsupported
Automatically redirected to a knowledge	Supported
Display a template	Unsupported
Use a GUI action	Unsupported
Make an automatic switch of consultation space	Unsupported	1 bot Teams = 1 language, 1 consultation space
Modify the value of a variable before action	Supported
Modify the value of a variable after action	Supported
Requesting user satisfaction	Unsupported

General sentences

Feature	Support	Comment
Response to misunderstood sentences	Supported
Too many misunderstood sentences	Supported
Answer to long sentences	Unsupported
Answer to empty sentences	Supported
Click on the links	Unsupported
Links open in new windows	Unsupported
Response to unpublished knowledge	Supported
Default response when action is empty	Supported
The answer is available in the default language	Unsupported
The answer is not defined for this consultation space	Supported
The answer is available from another consultation space	Unsupported
Refocusing sentence	Supported
Internal error response	Supported
Introduction of rewording	Supported	The rewords are displayed listed AND in buttons. Only buttons are clickable. Buttons contain the title of the knowledge.
General suggestion for reformulations	Supported	The text defined in the general suggestion must be the same as the title of the knowledge to which this general suggestion redirects.

Knowledges type

Feature	Support
Simple knowledge	Supported
Decision tree	Supported
Complementary answer	Supported
Internaut activity	Unsupported
Slot filling	Supported

Other

Feature	Support
Capture user intent	Supported
Use a context condition	Supported
Metabot	Supported
Using a WS	Supported
SAML	Supported

Features specific to the dydu chatbox

Feature	Support	Comment
Welcome sentence	Supported
Information banner	Unsupported
Top knowledge	Unsupported
Autosuggestion	Unsupported
Disclaimer GDPR	Unsupported	Managed in the privacy policy and the TOS of the Teams application. To be defined by the customer when configuring their Teams bot application.
Onboarding	Unsupported
GDPR recovery request	Unsupported
GDPR deletion request	Unsupported
Allow the end-user to change the language	Unsupported	1 bot Teams = 1 language, 1 consultation space
Allow the end user to change the consultation space	Unsupported	1 bot Teams = 1 language, 1 consultation space
